Tecnología Co., Ltd. de la electrónica de CCOM
Amo óptico del CCTV para proporcionar las mejores soluciones video
Tecnología Co., Ltd. de la electrónica de CCOM
Amo óptico del CCTV para proporcionar las mejores soluciones video
 |
| Lugar de origen: | Porcelana |
| Nombre de la marca: | CCOM LENS |
| Cantidad de orden mínima: | 100pcs |
|---|---|
| Detalles de empaquetado: | Estándar |
| Tiempo de entrega: | 3-8 días de trabajo |
| Condiciones de pago: | T/T, Western Union, Moneygram, PayPal |
| Capacidad de la fuente: | Muestras disponibles |
| Lente del tablero: | Lente de montura M12 | Resolución: | 5MP a 8MP |
|---|---|---|---|
| Montar: | M12 por 0.5 | Constructure: | El metal + el vidrio |
Economic good 1/1.8" 3.6mm/6mm/12mm/16mm/25mm 5MP-8MP Megapixel S-mount M12x0.5 mount Low-distortion Board Lens, 25mm/35mm 8MP long focal Lens for 1/1.8" 1/2" sensors

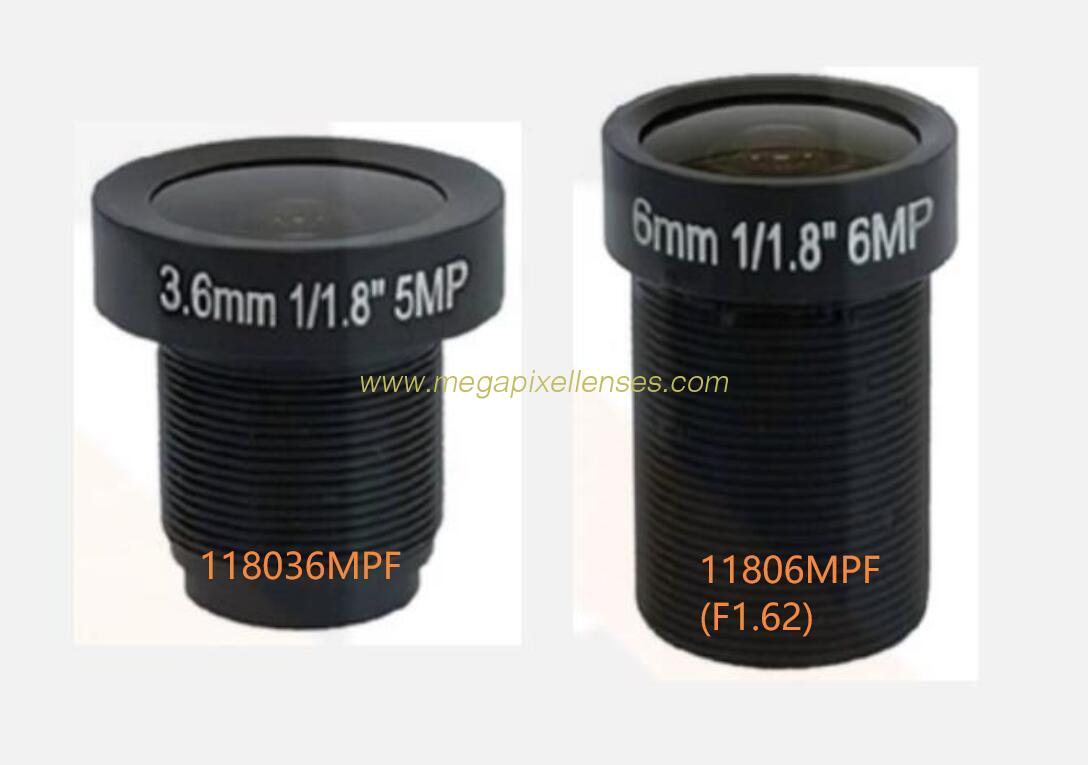

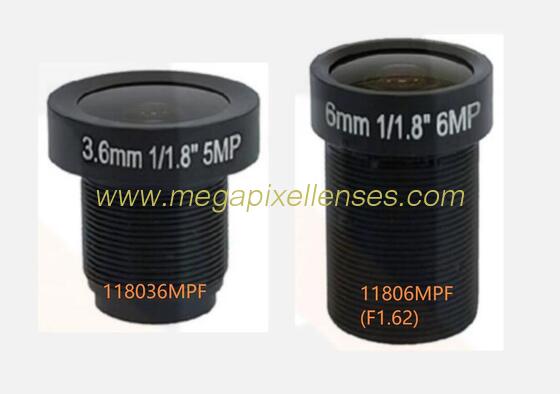

MODEL 118036MPF
IMAGE FORMAT 1/1.8”
FOCAL LENGTH 3.6mm
F.O.V (DxHxV) 140°x112°x84°
RESOLUTION 5MP
APERTURE F2.0
DISTORTION <-40%
MOUNT M12x0.5
IRIS Fixed
M.O.D. 0.3m
B.F.L. 6.2±0.2mm
M.B.F. 5.8±0.2mm
T.T.L. 23mm
CONSTRUCTION 6G+IR
DIMENSION Φ17×17.2mm
WEIGHT 6.7g
MODEL 11806MPF (F1.62)
IMAGE FORMAT 1/1.8”
FOCAL LENGTH 6mm
F.O.V (DxHxV) 85°x75°x48°
RESOLUTION 6MP
APERTURE F1.62
DISTORTION <-10.6%
MOUNT M12x0.5
IRIS Fixed
M.O.D. 0.3m
B.F.L. 5.3±0.2mm
M.B.F. 4.6±0.2mm
T.T.L. 24.98mm
CONSTRUCTION 4G2P+IR
DIMENSION Φ14×20.3mm
WEIGHT 5.4g
C.R.A. 10.9°

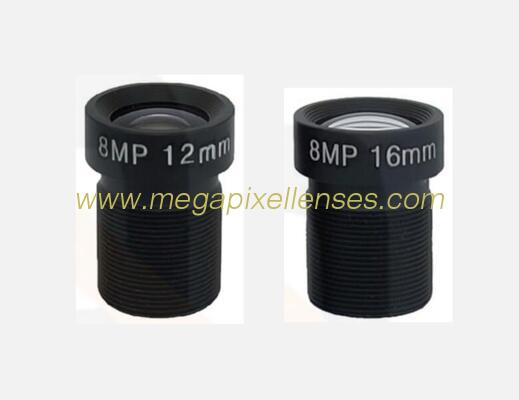

MODEL 11812MPF-E
IMAGE FORMAT 1/1.8”
FOCAL LENGTH 12mm
F.O.V (DxHxV) 41.26°x36.33°x27.91°
RESOLUTION 8MP
APERTURE F1.8
DISTORTION <2%
MOUNT M12x0.5
IRIS Fixed
M.O.D. 0.2m
B.F.L. 4.2mm
T.T.L. 22.7mm
CONSTRUCTION 8G+IR
DIMENSION Φ14×18.5mm
WEIGHT 5.1g
MODEL 11816MPF
IMAGE FORMAT 1/1.8”
FOCAL LENGTH 16mm
F.O.V (DxHxV) 31.53°x25.42°x19.19°
RESOLUTION 8MP
APERTURE F1.8
DISTORTION <-0.4%
MOUNT M12x0.5
IRIS Fixed
M.O.D. 0.25m
B.F.L. 4.2mm
T.T.L. 22.2mm
CONSTRUCTION 7G+IR
DIMENSION Φ14×18.0mm
WEIGHT 4.4g
MODEL 1182524MPF
IMAGE FORMAT 1/1.8”
FOCAL LENGTH 25mm
F.O.V (DxHxV) 19.2°x15.5°x8.9°
RESOLUTION 8MP
APERTURE F2.4
DISTORTION <-0.3%
MOUNT M12x0.5
IRIS Fixed
M.O.D. 0.5m
M.B.F.L. 3.54mm
T.T.L. 24.83mm
CONSTRUCTION 7G+IR
DIMENSION Φ14×21.29mm
WEIGHT 4.92g
MODEL 1182524MPF
IMAGE FORMAT 1/1.8”
FOCAL LENGTH 25mm
F.O.V (DxHxV) 19.2°x15.5°x8.9°
RESOLUTION 5MP
APERTURE F2.4
DISTORTION <-0.3%
MOUNT M12x0.5
IRIS Fixed
M.O.D. 0.5m
M.B.F.L. 3.54mm
T.T.L. 24.83mm
CONSTRUCTION 7G+IR
DIMENSION Φ14×21.29mm
WEIGHT 4.92g
MODEL 1182518MPF
IMAGE FORMAT 1/1.8”
FOCAL LENGTH 25mm
F.O.V (DxHxV) 19.3°x15.5°x11.6°
RESOLUTION 5MP
APERTURE F1.8
DISTORTION <-0.3%
MOUNT M12x0.5
IRIS Fixed
M.O.D. 0.3m
M.B.F.L. 7.5mm
B.F.L. 13.07mm
T.T.L. 34.99mm
CONSTRUCTION 6G+IR
DIMENSION Φ17×28.25mm
MODEL 1182516MPF
IMAGE FORMAT 1/1.8”
FOCAL LENGTH 25mm
F.O.V (DxHxV) 20.05°x17.43°x9.87°
RESOLUTION 8MP
APERTURE F1.6
DISTORTION <-0.37%
MOUNT M12x0.5
IRIS Fixed
M.O.D. 0.3m
M.B.F.L. 5.136mm
T.T.L. 30.336mm
CONSTRUCTION 6G+IR
DIMENSION Φ17×25.2mm
WEIGHT 12g
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com.
